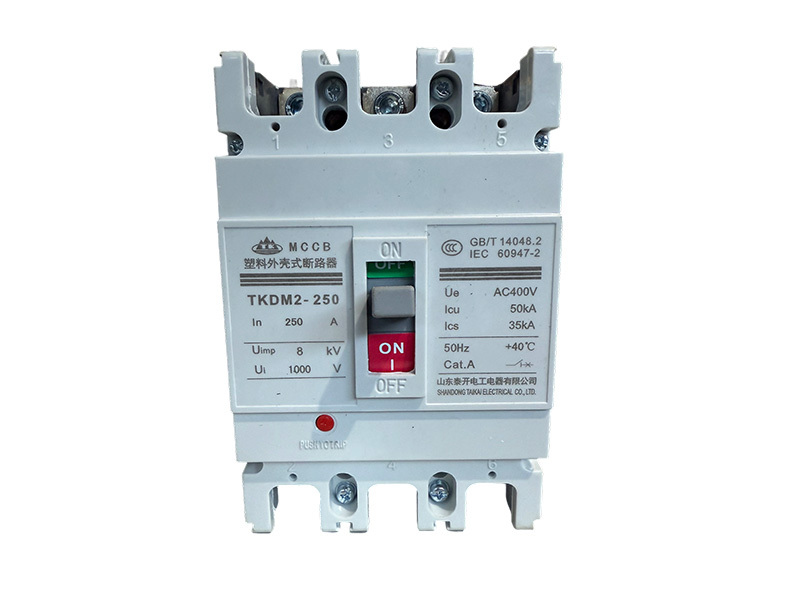

TKDM2 series Moulded-case circuit breaker (MCCB)

TKDM2 series Moulded-case circuit-breaker (MCCB) (hereinafter referred to as Circuit-breaker) is suitable for AC 50Hz circuits with a rated insulation voltage of 1000V and a rated voltage of 400V, rated working current up to 800A. It is generally used for power distribution, protecting lines and power equipment from damage caused by overloads, short circuits, and undervoltage faults. Circuit-breakers with a rated current of 800A or less can also be used for motor protection in locations with infrequent switching and motor starting.

Belonging Category:

Moulded-case circuit-breaker (MCCB)

Keywords:

TKDM2 series Moulded-case circuit breaker (MCCB)

86-538-8520889

Product Inquiry

Related Products

Product Details

Scope of Application and Main Features

The TKDM2 series Moulded-case circuit-breaker (MCCB) (hereinafter referred to as Circuit-breaker) is suitable for AC 50Hz circuits with a rated insulation voltage of 1000V and a rated voltage of 400V. It is used for power distribution with rated working currents up to 800A, protecting lines and power equipment from damage caused by overloads, short circuits, and undervoltage. Circuit-breakers with rated currents of 800A or less can also be used for motor protection in locations with infrequent switching and motor starting.

This series of Circuit-breakers features a compact structure, small size, high breaking capacity, and complete internal and external accessories.

This series of Circuit-breakers has an isolation function, its corresponding symbol is:

Standards Compliance

IEC 60947-1 and GB/T 14048.1 Low-voltage switchgear and controlgear General rules

IEC 60947-2 and GB/T 14048.2 Low-voltage switchgear and controlgear Circuit-breakers

IEC 60947-4-1 and GB/T 14048.4 Low-voltage switchgear and controlgear Electromechanical contactors and motor starters

IEC 60947-5-1 and GB/T 14048.5 Low-voltage switchgear and controlgear Electromechanical control circuit devices

Operating and Installation Conditions

The ambient air temperature should not exceed +40℃, and the average temperature over 24 hours should not exceed +35℃. The lower limit of the ambient air temperature is -5℃; Note: For operating conditions where the ambient air temperature is higher than +40℃ or lower than -5℃, users should consult the manufacturer;

The installation altitude should not exceed 2000m;

At a maximum temperature of +40℃, the relative humidity of the air should not exceed 50%. Higher relative humidity is permissible at lower temperatures, for example, 90% at 20℃. Special measures should be taken for condensation occasionally caused by temperature changes;

The installation location should be free from explosive media and gases or conductive dust that could corrode metal or damage insulation;

The installation location should be protected from rain and snow;

Pollution degree: Level 3;

Installation category: The installation category for the main circuit of the Circuit-breaker is Ⅲ, and the installation category for auxiliary and control circuits not connected to the main circuit is Ⅱ;

The Circuit-breaker should be installed and used according to the requirements of the product manual;

Protection level IP30;

Model Meaning

TKD
1

M
2

2
3

250
4

P
5

4
6

300
7

A
8

I
9

□
10

Serial Number	Description	Model Meaning
1	Enterprise code	TKD: Shandong Taikai Electrical Appliance Co., Ltd.
2	Product Category	M: Moulded-case circuit-breaker (MCCB)
3	Design SN	2
4	Frame Size	63、125、250、400、630、800
5	Operation Mode Code	No code: Manual operation P: Electric operating mechanism Z: Rotary handle operating mechanism
6	Pole Number	3: 3 poles 4: 4 poles
7	Internal Accessory Code	300: No accessories Others see Trip mechanism and internal accessories table
8	Neutral Pole Type	Neutral pole (N pole) type for four-pole Circuit-breakers: Type A, Type B, Type C, Type D ①
9	Overload Alarm Without Trip	Blank: Standard configuration I: Overload alarm without trip
10	Cabling Type	Blank: Front panel wiring Optional: Plug-in front panel wiring, plug-in rear panel wiring, connecting bar

Note:

①Neutral pole code explanation:

A: The N pole does not have an overcurrent trip unit, and the N pole is always connected, not switching with the other three poles;

B: The N pole does not have an overcurrent trip unit, and the N pole switches with the other three poles (N pole closes later and opens earlier);

C: The N pole has an overcurrent trip unit, and the N pole switches with the other three poles (N pole closes later and opens earlier);

D: The N pole has an overcurrent trip unit, and the N pole is always connected, not switching with the other three poles;

Main Technical Parameters and Performance Indicators of the Circuit-breaker

Frame Size Rated Current (A)		63			125		250
Rated Current In (A)		(6)、10、16、20、25、32、40、50、63			(10)、16、20、25、32、40、50、63、80、100、125		100、125、140、160、180、200、225、250
Number of Poles		3 (L type)	3 (M type)	4 (M type)	3	4	3	4
Rated Insulation Voltage Ui (V)		AC800			AC1000		AC1000
Rated Impulse Withstand Voltage Uimp (V)		8000			8000		8000
Rated Voltage Ue (V)		AC400			AC400		AC400
Arcing distance (mm)		>50			>50		>50
Rated ultimate breaking capacity Icu (kA)	AC400V	50			50		50
Rated operating breaking capacity Ics (kA)	AC400V	35			35		35
Mechanical life (times) *	AC400V	8000			8000		8000
Mechanical life (times) *	Maintenance-free	20000			20000		20000
	Requires maintenance	40000			40000		40000
Dimensions (mm)	W	78	78	103	92	122	107	142
	L	135	135		150		165
	H	73.5	81.5		68		86
Neutral (N) Rated current		Same as Circuit-breaker Rated current

★According to GB/T 14048.1, the term "life" refers to the probability of the number of operations that an electrical appliance can complete before repair or replacement of parts.

▲Requires special supply within the brackets.

Main parameters and performance indicators of Circuit-breaker

Frame Size Rated Current (A)		400		630		800
Rated Current In (A)		225, 250, 315, 350, 400		400, 500, 630		630, 700, 800
Number of Poles		3	4	3	4	3	4
Rated Insulation Voltage Ui (V)		AC1000		AC1000		AC1000
Rated Impulse Withstand Voltage Uimp (V)		8000		8000		8000
Rated Voltage Ue (V)		AC400		AC400		AC400
Arcing distance (mm)		>100		>100		>100
Rated ultimate breaking capacity Icu (kA)	AC400V	50		65		65
Rated operating breaking capacity Ics (kA)	AC400V	35		42		42
Mechanical life (times) *	AC400V	7500		7500		7500
Mechanical life (times) *	Maintenance-free	10000		10000		10000
	Requires maintenance	20000		20000		20000
Dimensions (mm)	W	150	198	182	240	210	280
	L	257		270		280
	H	107		110		116
Neutral (N) Rated current	Same as Circuit-breaker Rated current

★According to GB/T 14048.1, the term "life" refers to the probability of the number of operations that an electrical appliance can complete before repair or replacement of parts.
