TKPL series air bypass switch

The TKPL series air bypass switch is mainly used inside SVG dynamic reactive power compensation devices, installed in parallel with power electronic devices. It is used to quickly isolate faults from the system when an IGBT unit fails, ensuring uninterrupted power supply to the entire line. The product Rated voltage is AC1500V, frequency 50/60Hz. The main Rated currents include 500A, 630A, 800A, and 1000A. The product supports manual tripping and electric closing, and has self-locking functions for both tripping and closing states.

Belonging Category:

New product showcase

Keywords:

TKPL series air bypass switch

86-538-8520889

Product Inquiry

Related Products

Product Details

Product Introduction

The TKPL series air bypass switch is mainly used inside the SVG dynamic reactive power compensation device, installed in parallel with power electronic devices, to quickly isolate the fault from the system in case of IGBT unit failure, ensuring uninterrupted power supply of the entire line. The product Rated voltage is AC1500V, frequency 50/60Hz, main Rated current includes 500A, 630A, 800A, and 1000A, and the product supports manual tripping and electric closing, with self-locking function for tripping and closing states.

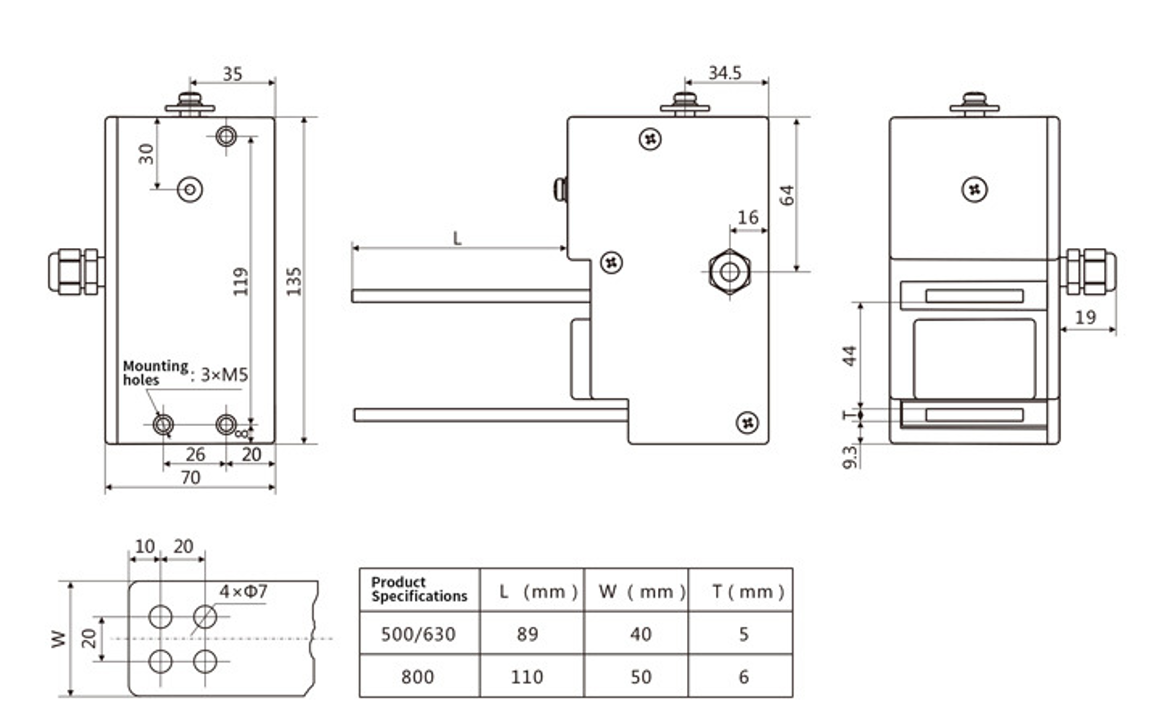

Main Parameters

Serial Number	Item	Unit	Performance Parameters
1	Rated voltage	V	AC1500V
2	Rated working current	A	500/630/800/1000
3	Rated frequency	Hz	50/60
4	Pole number	/	1P (Single Pole)
5	short-time withstand current	/	4Ie（4s）
6	Rated control voltage	V	DC400
7	Operating time	ms	≤15
8	Status signal return time	ms	≤20
9	Mechanical life	Times	＞1000
10	Mechanical life	Times	＞100
11	Insulating medium		Air
12	Tripping method	/	Manual tripping
13	Closing method	/	Electric closing
14	Status signal contact	/	One normally open, one normally closed (standard)
