TKDB2Z-63 series miniature DC Circuit Breaker
Belonging Category:
Keywords:

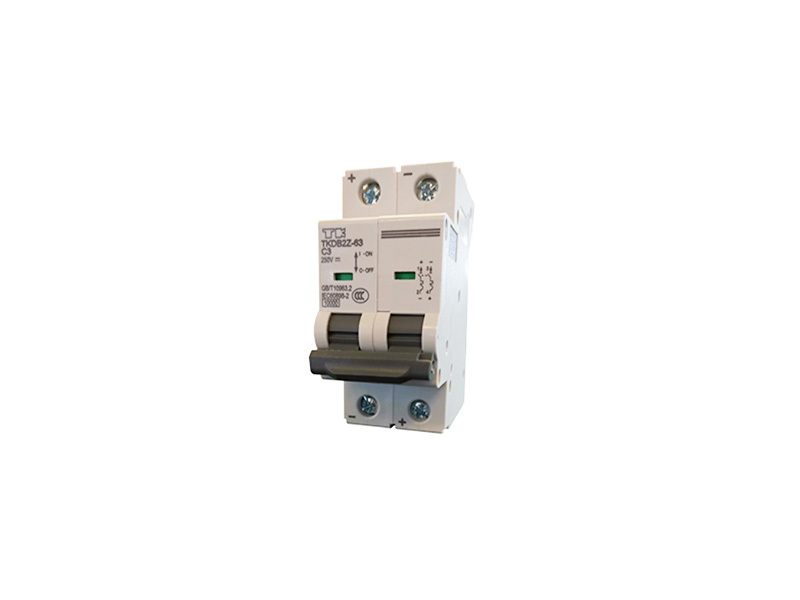

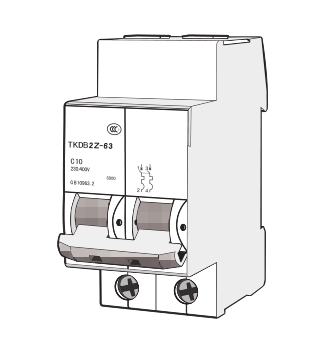

TKDB2Z-63 series miniature DC Circuit Breaker
Product Details
Scope of Application and Main Features
The TKDB2Z-63 series of miniature DC circuit breakers are suitable for low-voltage terminal power distribution systems in residential, industrial, and construction fields, and have overload and short-circuit dual protection functions.
Product Selection
| TKD 1 |
B2Z 2 |
- | 63 3 |
C 4 |
32 5 |
/ | 2P 6 |
OF2+SD2 7 |
| Serial Number | Description | Model Meaning |
|---|---|---|
| 1 | Enterprise code | TKD:Shandong Taikai Electrical Appliance Co., Ltd. |
| 2 | Product Category | B: Miniature Circuit Breaker (MCB)、2: Design SN、Z: Represents DC |
| 3 | frame size | 63 |
| 4 | Tripping characteristics | B、C |
| 5 | Rated current | 1、2、3、4、6、10、16、20、25、32、40、50、63 |
| 6 | Pole number | 1P、2P |
| 7 | Attachment Code | OF2: Auxiliary contact, SD2: Alarm contact, MX+OF2: shunt release |

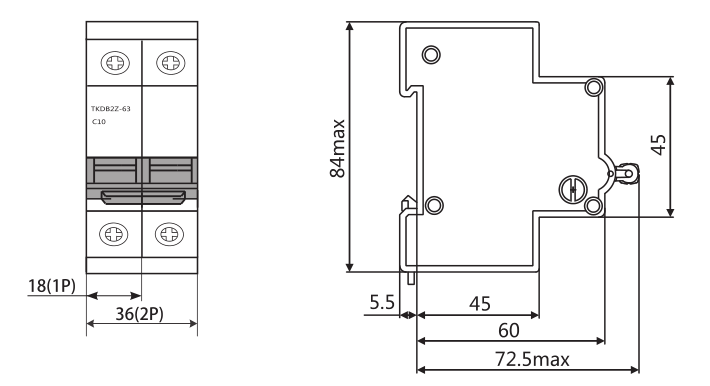

Dimensions
Compliant Standards
IEC60947-2、GB/T14048.2
Tripping Characteristics
Instantaneous tripping range: B type: 5 (In±20%ln) C type: 10 (ln±20%In)
Main technical parameters
| short-circuit breaking capacity | Rated current | Pole number | Rated Voltage | Breaking Capacity |
|---|---|---|---|---|
| Rated operating breaking capacityIcs | 1~63A | 1P | DC125V/220V/250V | 7.5kA |
| 2P | DC250V | |||
| DC440V/500V | 6kA | |||
| Rated ultimate breaking capacityIcu | 1~63A | 1P | DC125V/220V/250V | 10kA |
| 2P | DC250V | |||
| DC440V/500V | 10kA |
Mechanical life: 20000 times
Standard operating conditions
The installation altitude shall not exceed 2000m
Ambient temperature: -35℃~+70°℃
Protection level: IP20
Damp heat resistance: Class 2 (relative humidity 95% at 55℃)
No significant vibration and impact
Wiring Capacity
.35mm2 and below wires
Mounting Method
TH35mm standard rail, easy and convenient installation.
Wiring Diagram
Load |
1P wiring diagram |
2P wiring diagram |
Remarks:
1) L+ positive power supply, L- negative power supply.
