TKDG1-125 series isolating switch
Belonging Category:
Keywords:

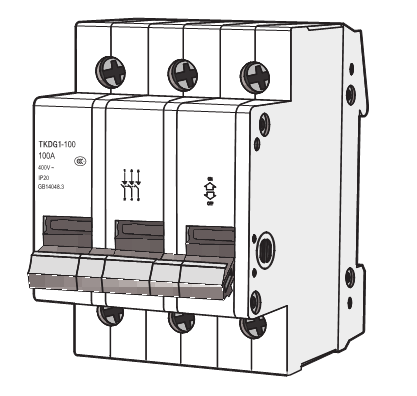

TKDG1-125 series isolating switch
Product Details
Scope of Application and Main Features
The TKDG1-125 series isolating switches are suitable for low-voltage terminal power distribution systems in residential, industrial, and construction fields, with load connection, disconnection, and circuit isolation capabilities.
Product Selection
| TKD 1 |
G1 2 |
- | 125 3 |
/ | 2P 4 |
32 5 |
| Serial Number | Description | Model Meaning |
|---|---|---|
| 1 | Enterprise code | TKD: Shandong Taikai Electrical Appliance Co., Ltd. |
| 2 | Product Category | G: Isolating switch, 1: Design SN |
| 3 | frame size | 125 |
| 4 | Pole number | 1P、2P、3P、4P |
| 5 | Rated current | 32、40、50、63 |
Compliant Standards
●IEC60947-3、GB/T14048.3
Main Technical Parameters
● Rated working current(A): 32、40、50、63、80、100、125
● Rated voltage: AC 230/400V
● Making and breaking capacity: 3In (400V, cosp=0.65)
● Rated short-circuit making capacity: 3000A
● Rated short-time withstand current: 1500/1s (400V)
● Mechanical life: 10000 times
Standard Working Conditions
● Installation altitude should not exceed 2000m
● Ambient temperature: -35℃~+70℃
● Protection level: IP20
● Damp heat resistance: Class 2 (95% relative humidity at 55℃)
● No significant vibration or impact

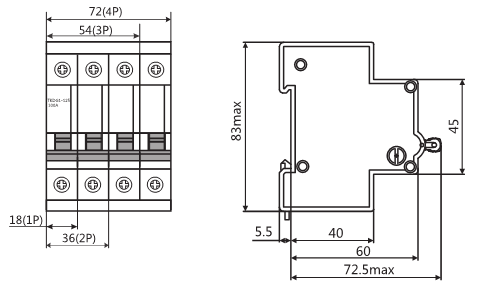

Dimensions
Wiring Capacity
● 4mm² single-core hard wire and above, 50mm² and below wires
Mounting Method
● TH35mm standard rail, simple and convenient installation.
