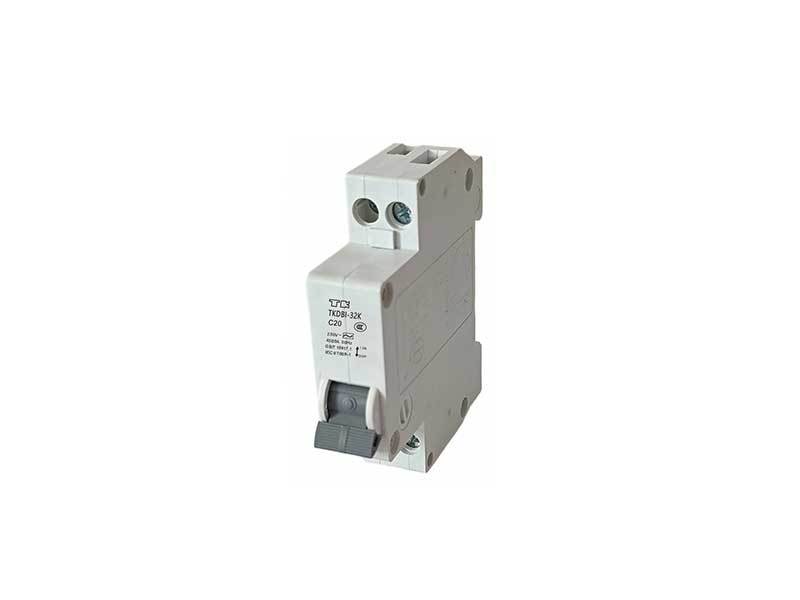

TKDB1-32K series Miniature Circuit Breaker (MCB)
Belonging Category:
Keywords:
TKDB1-32K series Miniature Circuit Breaker (MCB)
Product Details
Scope of application
The TKDB1-32K series Miniature Circuit Breaker (MCB) is suitable for control and isolation of low-voltage terminal power distribution in residential, industrial, and construction fields. It features overload and short-circuit dual protection, preventing electric shock from energized neutral lines during faults.
Miniature Circuit Breaker (MCB) | frame size 32 | Phase wire + Neutral wire K | Rated working current1、2、3、4、6、10、16、20、25、32 32 |
Compliant Standards
● IEC60898-1、GB/T 10963.1
Tripping Characteristics
● C-type: Instantaneous tripping range (5~10) In
Main technical parameters
● Rated working current(A）: 6、10、16、20、25、32
● TT、TN-S grounding system
● Rated voltage: AC230V
● Breaking capacity: 4.5kA
● Mechanical life: 10000 times
Stand working conditions
● Installation altitude should not exceed 2000m
● Ambient temperature: -35°℃~+70℃
● Protection level: IP20
● Damp heat resistance: Class 2 (Relative humidity 95% at 55℃ temperature)
● No significant vibration and impact
Wiring Capacity
10mm2 and below wires

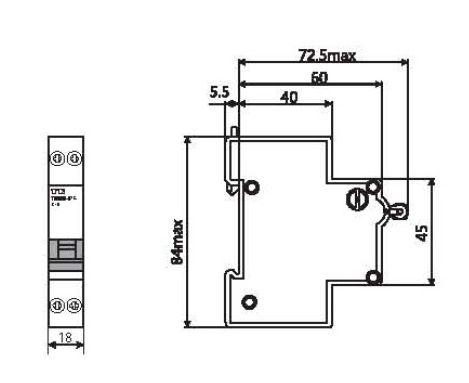

Mounting Method
TH35mm standard rail, easy and convenient installation.
Wiring diagram
