TKDGQ series self-restoring over/under voltage protector
Belonging Category:
Keywords:

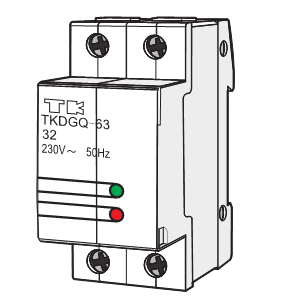

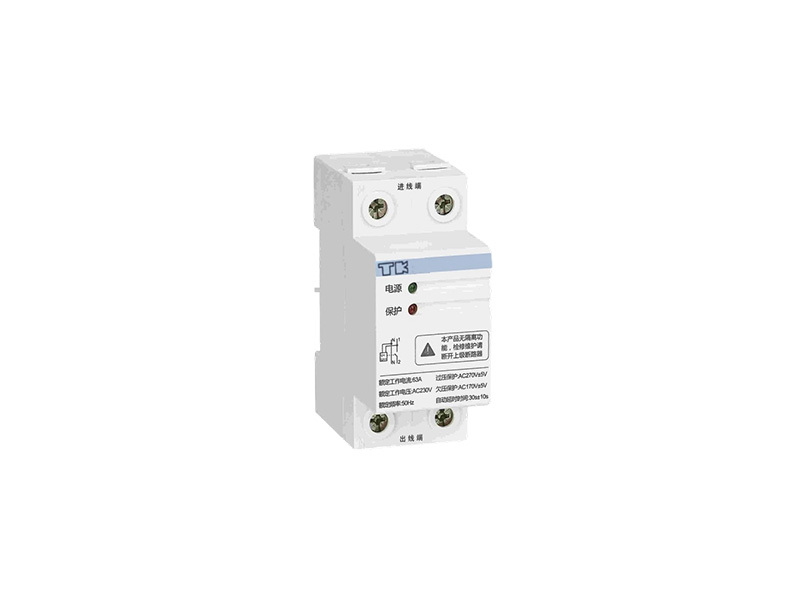

TKDGQ series self-restoring over/under voltage protector
Product Details
Scope of application
The TKDGQ series self-restoring over-and-under voltage protector is a protective device developed based on the current mains power conditions. When the voltage is higher or lower than the operating voltage of the protector, the protector can quickly and reliably cut off the load power to ensure the safety of electrical appliances and personnel. When the mains voltage returns to normal, the protector automatically connects the power supply after a delay, effectively protecting electrical appliances from the impact of instantaneous power supply, and all functions are fully automatic without manual operation.
Product Selection
| TKD 1 |
GQ 2 |
- | 63 3 |
/ | 2P 4 |
32 5 |
| Serial Number | Description | Model Meaning |
|---|---|---|
| 1 | Enterprise code | TKD:Shandong Taikai Electrical Appliance Co., Ltd. |
| 2 | Product Category | GQ: Over-and-Under Voltage Protector |
| 3 | frame size | 63 |
| 4 | Pole number | 2P、4P |
| 5 | Rated current | 32、40、50、63 |

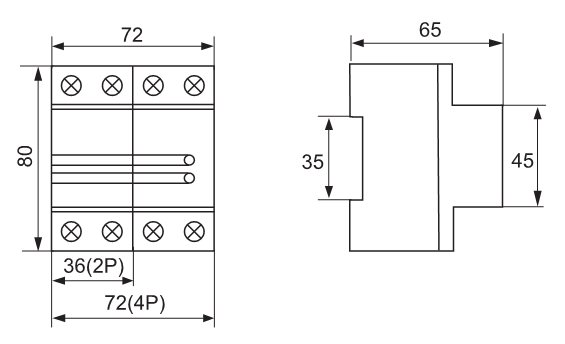

Dimensions
Wiring Capacity
25mm2 and below wires
Mounting Method
Standard TH35mm rail, easy installation.
Cabling type

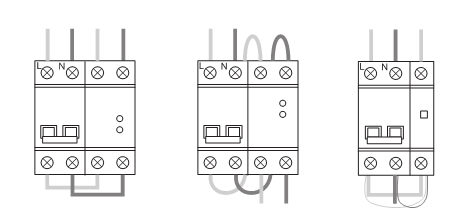

(Bottom wiring diagram) (Top wiring diagram) (1P wiring diagram)
Main technical parameters
| Product Specifications | Two-phase over-and-under voltage | Three-phase over-and-under voltage + phase loss Three-phase four-wire over-and-under voltage + phase loss |
|---|---|---|
| Rated currentIn（A） | 32、40、50、63 | 32、40、50、63 |
| Rated Voltage | AC 230V | AC 400V |
| Rated Frequency | 50Hz | 50Hz |
| Overvoltage start value | 275±5V | 480±15V |
| Normal pressure recovery value | 240~260V | 420~440V |
| Undervoltage start value | 170±5V | 280±15V |
| Normal pressure recovery value | 190±5V | 335±10V |
| Over/Under voltage start time | ≤60s | ≤60s |
| Self-consumption | <1W | <2W |
| Electrical mechanical life | >100,000 times | >100,000 times |
Power indicator: Green Protection indicator: Red
Stand working conditions
1. Altitude not exceeding 2000m;
2. Ambient air temperature -25℃~+55°℃;
3. The pollution level of the installation site is allowed according to pollution level 2 stipulated in 6.1.3.2 of GB/T 14048.1.
Wiring Capacity
25mm2 and below wires
Mounting Method
Standard TH35mm rail, easy installation.
Cabling type

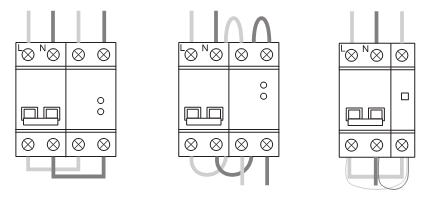

(Bottom wiring diagram) (Top wiring diagram) (1P wiring diagram)
Auxiliary/Alarm contact
Auxiliary wiring diagram, the diagram shows when the Circuit-breaker is closed
Alarm wiring diagram, the diagram shows when the Circuit-breaker is closed
Auxiliary contact: Installed on the left side of the Miniature Circuit Breaker (MCB), used to indicate the on/off status of the Circuit-breaker, outputting a passive signal;
Alarm contact: Installed on the left side of the Miniature Circuit Breaker (MCB), used to give a passive alarm signal when the Circuit-breaker fails and trips.
| Attachment Name | Adaptable Circuit-breaker |
|---|---|
| OF auxiliary contact | TKDB1-63、TKDB1-125 |
| SDAlarm contact | TKDB1L-63、TKDB1L-125 |
| OF2 auxiliary contact | TKDB2Z-63 |
| SD2Alarm contact | TKDB2Z-63 |
Auxiliary/Alarm contactMain technical parameters:
| Rated voltage(V) | Rated current(A) | Width (mm) |
|---|---|---|
| AC400 | 3 | 9 |
| AC230 | 6 | |
| DC125 | 1 | |
| DC48 | 2 | |
| DC24 | 6 |
Wiring Capacity
Single wire: 2.5mm 2 Double wire: 1.5mm 2
Note: When ordering the corresponding accessories, please specify the specific product model.
Example: TKDB1-63/2P/C63+OF
MX+OF shunt release
After receiving the signal, it triggers the release of the assembled Circuit-breaker
Indicates the on/off status of the Circuit-breaker
Ensure the circuit breaker reliably trips when the power supply voltage is between 70% and 110% of the rated control power supply voltage.
Trip power consumption:
| Voltage (AC or DC) | Power Consumption | Width (mm) |
|---|---|---|
| AC 230V/400V | 40VA | 18 |
| DC 24V/48V | 45W |
The MX+OF shunt release is for short-time duty, and the coil energization time ≤1 second.
Note: When ordering corresponding accessories, please specify the specific product model.
Example: TKDB1-63/2P/C63+(MX+OF)
Installation Instructions

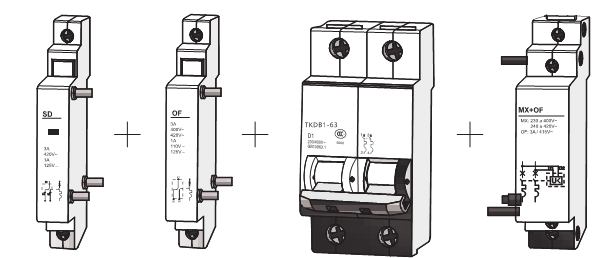

(SD Alarm contact) (OF auxiliary contact) (Circuit-breaker) (MX+OF shunt release)
