TKDR3 series thermal overload relay
Belonging Category:
Keywords:
TKDR3 series thermal overload relay
Product Details
Scope of Application
The TKDR3 series thermal overload relays are suitable for AC 50Hz/60Hz circuits with a rated voltage up to 660V and a rated working current up to 630A. They are used for thermal overload, phase failure, and three-phase imbalance protection of AC motors and can be combined with AC contactors to form motor starters. This product conforms to GB/T14048.4, IEC60947-4-1, GB/T14048.5, and IEC60947-5-1 standards.
Model and its Meaning
| TKD 1 |
R 2 |
3 3 |
- |
25 4 |
1301 5 |
0.1~0.16 6 |
MB 7 |
| Serial Number | Description | Model Meaning |
|---|---|---|
| 1 | Enterprise code | TKD:Shandong Taikai Electrical Appliance Co., Ltd. |
| 2 | Product Category | R: Thermal Overload Relay |
| 3 | Design SN | 3 |
| 4 | Frame size current | 25、36、95（93）、150、200、630 |
| 5 | Product Number | See Table 2 for the product number of the setting current adjustment range. |
| 6 | Current Adjustment Range | See Table 2 for the current adjustment range. |
| 7 | Accessory Mounting Bracket | MB: Indicates the accessory mounting bracket. MB1-25 is compatible with the TKDR3-25 thermal overload relay; MB1-36 is compatible with the TKDR3-36 thermal overload relay; MB1-95(93) is compatible with the TKDR3-95(93) thermal overload relay. Other frames do not have mounting brackets. |
Normal Operating Conditions and Installation Conditions
Ambient air temperature: -5℃~+40℃, the average value within 24 hours does not exceed +35℃;
Altitude: Not exceeding 2000m;
Atmospheric humidity: At +40℃, the atmospheric humidity does not exceed 50%; at lower temperatures, higher relative humidity is allowed. The monthly average minimum temperature of the wettest month does not exceed 25℃, and the monthly average maximum humidity of that month does not exceed 90%. Measures must be taken for condensation on the product due to temperature changes;
Pollution degree: Grade 3;
Installation category: Category Ⅲ;
Installation conditions: The inclination of the mounting surface to the vertical surface is not greater than +5°;
Impact and vibration: The product should be installed and used in places without significant shaking, impact, and vibration;
Main Features
It has multiple protection functions;
Normal tripping manual reset time is not more than 2min;
Low energy consumption;
It has one pair of normally open and normally closed contacts;
It can be used directly with AC contactors or installed independently through a connecting bracket;
Functional Characteristics
See Table 1 for operating characteristics.
| Operating Characteristics | Serial Number | Rated current multiple | Operating time | Initial Condition | Ambient air temperature (℃) | |
|---|---|---|---|---|---|---|
| Any two phases | Another phase | |||||
| When the load of each phase is unbalanced | 1 | 1.00 | 0.90 | >2h | Cold state | 20±5 |
| 2 | 1.15 | 0 | <2h | After sequence 1 test | ||
| When the load of each phase is balanced | 1 | 1.05 | >2h | Cold state | 20±5 | |
| 2 | 1.20 | <2h | After sequence 1 test | |||
| 3 | 1.50 | <4min | After sequence 1 test | |||
| 4 | 7.20 | 4s < Tp≤10s | Cold state | |||
| Temperature Compensation Performance | 1 | 1.00 | 2h | Cold state | 40±2 | |
| 2 | 1.20 | <2h | After sequence 1 test | -5±2 | ||
| 3 | 1.05 | >2h | Cold state | |||
| 4 | 1.30 | <2h | After sequence 3 test | |||
See Table 2 for the setting current adjustment range.
| Specifications | Number | Current Adjustment Range (A) | Pluggable Contactor |
|---|---|---|---|
| TKDR3-25 | 1301 | 0.1 - 0.16 | TKDC3-09~32 |
| 1302 | 0.16 - 0.25 | ||
| 1303 | 0.25 - 0.4 | ||
| 1304 | 0.6 - 0.63 | ||
| 1305 | 0.63 - 1.0 | ||
| 1306 | 1.0 - 1.6 | ||
| 1306X | 1.25 - 2 | ||
| 1307 | 1.6 - 2.5 | ||
| 1308 | 2.5 - 4.0 | ||
| 1310 | 4 - 6 | ||
| 1312 | 5.5 - 8 | ||
| 1314 | 7 - 10 | ||
| 1316 | 9 - 13 | ||
| 1321 | 12 - 18 | ||
| 1322 | 17 - 25 | ||
| TKDR3-36 | 2353 | 23 - 32 | TKDC3-32 |
| 2353X | 28 - 36 | ||
| 2355 | 30 - 40 | ||
| TKDR3-95(93) | 3322 | 17 - 25 | TKDC3-40~95 |
| 3353 | 23 - 32 | ||
| 3355 | 30 - 40 | ||
| 3357 | 37 - 50 | ||
| 3359 | 48 - 65 | ||
| 3361 | 55 - 70 | ||
| 3363 | 63 - 80 | ||
| 3365 | 80 - 95 | ||
| TKDR3-150 | 4365 | 80 - 104 | TKDC3-115~170 |
| 4367 | 95 - 120 | ||
| 4369 | 110 - 150 | ||
| TKDR3-200 | 5365 | 80 - 125 | TKDC3-115~205 |
| 5367 | 100 - 160 | ||
| 5369 | 125 - 200 | ||
| TKDR3-630 | 6355 | 160 - 250 | TKDC3-225~630 |
| 6357 | 200 - 315 | ||
| 6359 | 250 - 400 | ||
| 6361 | 315 - 500 | ||
| 6363 | 400 - 630 |
Auxiliary contacts
| Number of auxiliary contacts | 1NC+1NO | ||
| Wiring diagram | NC 95  96NO 98  97 |
||
| Rated insulation voltage Ui (V) | AC660 | ||
| Conventional thermal current Ith (A) | 5 | ||
| Minimum connectable load | 24V 10mA | ||
| Maximum operating current (A) | AC-15 | AC220V | 2.73 |
| AC380V | 1.58 | ||
| DC-13 | DC220V | 0.2 | |

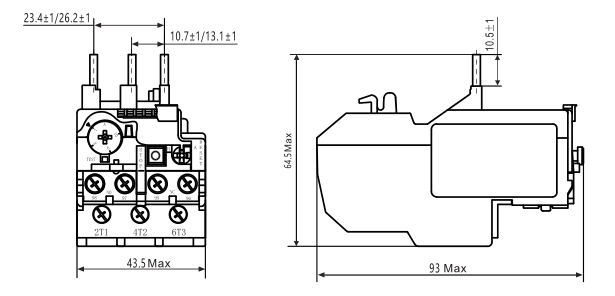

Outline and mounting dimensions
TKDR3-25 without mounting base
