TKDPZ Series AC low-voltage distribution box

The TKDPZ series AC low-voltage distribution box is suitable for single-phase three-wire or three-phase five-wire terminal circuits with a rated voltage of 220V to 400V and a total load current not exceeding 250A. It serves as a complete set of equipment for controlling electrical equipment and protecting against overload, short-circuit overcurrent, and leakage. It can be widely used in high-rise buildings, hotels, residential buildings, stations, ports, airports, hospitals, cinemas, large commercial outlets, and industrial and mining enterprises. The TKDPZ series AC low-voltage distribution box is a new type of low-voltage distribution box designed based on the requirements of a large number of electricity users and design departments, adhering to the principles of safety, economy, rationality, and reliability. The product features high breaking capacity, good dynamic and thermal stability, flexible electrical scheme, convenient combination, strong practicality, novel structure, and high protection level.

Belonging Category:

Complete sets of products

Keywords:

TKDPZ Series AC low-voltage distribution box

86-538-8520889

Product Inquiry

Related Products

Product Details

Scope of Application

The TKDPZ series AC low-voltage distribution boxes are suitable for single-phase three-wire or three-phase five-wire terminal circuits with a rated voltage of 220V to 400V and a total load current not exceeding 250A. They serve as a complete set of equipment for controlling electrical equipment and providing protection against overload, short-circuit overcurrent, and leakage. They can be widely used in high-rise buildings, hotels, residences, stations, ports, airports, hospitals, cinemas, large commercial outlets, and industrial and mining enterprises.

The TKDPZ series AC low-voltage distribution boxes are newly designed low-voltage distribution boxes based on the requirements of a wide range of electricity users and design departments, adhering to the principles of safety, economy, rationality, and reliability. The products feature high breaking capacity, good dynamic and thermal stability, flexible electrical schemes, convenient combination, strong practicality, novel structure, and high protection level.

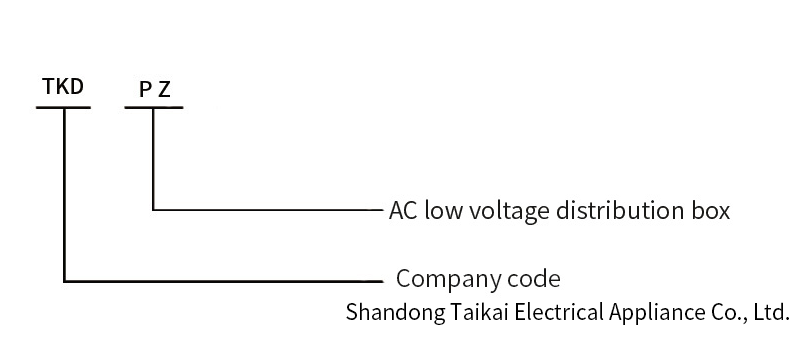

Model and Meaning

Standards Compliance

The TKDPZ series AC low-voltage power cabinets comply with the following standards:

GB/T 7251.1 Low-voltage switchgear and controlgear - Part 1: General rules

GB/T 7251.3 Low-voltage switchgear and controlgear - Part 3: Distribution boards (DBO) for use by unqualified persons

GB/T 4208 and IEC 60529 Degree of protection (IP Code)

Stand working conditions and installation conditions

Maximum ambient temperature +40℃, minimum ambient temperature -5℃. Users can specify a minimum temperature of no less than -25℃. The average temperature over 24 hours must not exceed +35℃. If exceeded, derating operation is required depending on the actual situation.

For indoor installation and use, the altitude of the installation location should not exceed 2000m.

The relative humidity of the surrounding air should not exceed 50% at a maximum temperature of +40℃, and higher relative humidity is allowed at lower temperatures. For example, 90% at +20℃. The possibility of occasional condensation due to temperature changes should be considered.

The inclination of the equipment during installation should not exceed 5° from the vertical plane.

The equipment should be installed in places free from strong vibrations and impacts, and in places where the electrical components will not be corroded.

Special requirements from the user can be discussed and resolved with the manufacturer.

Technical Performance Indicators

Rated voltage: AC400V, AC380V, AC230V, AC220V;

Rated insulation voltage: AC500V;

Rated frequency: 50HZ;

Rated short-time withstand current: 10kA;

Rated current levels: 250A, 225A, 200A, 180A, 160A, 140A, 125A, 100A, 80A, 63A, 60A, 50A, 40A, 32A, 30A, 25A, 20A, 16A, 10A, 6A;

Structural Features

The electrical components in the distribution box are installed using rails. The internal electrical switches use components with a width of 9mm modules, mounted on top-hat rails. They can be combined arbitrarily as needed, and the height of the installation rails is adjustable, which is particularly convenient for concealed installations.

The box door has a security lock to prevent unauthorized access. The inside of the box has a protective plate to prevent contact with live wiring points and busbars. Live parts and other components are covered inside the protective plate. Switch handles are exposed, allowing for convenient operation by opening the outer door. The use is safe and reliable. The box has entry and exit holes on the top, bottom, left, right, and back for easy wiring.

The layout is compact and reasonable, and installation, disassembly, and maintenance are convenient.

Miniature Circuit Breakers (MCBs) can be configured as needed to create a beautiful, luxurious, high-strength, and impact-resistant distribution box.

The use of modular electrical components, rail mounting, artistic appearance, and safe operation has led to widespread application both domestically and internationally.

Accessory list and installation

The following information should be provided when ordering:

Product name, model, and quantity

Main circuit system diagram

Auxiliary circuit electrical schematic diagram

Other special requirements that do not conform to the normal operating conditions of the product.
