TKDXL series AC low-voltage power cabinet

The TKDXL series AC low-voltage power cabinets are suitable for AC 50Hz power distribution systems with a rated voltage of AC400V and a rated working current of up to 630A for power plant, substation, and factory users, used for energy conversion, distribution, and control of power, lighting, and distribution equipment. The TKDXL type AC low-voltage power cabinet is a new type of low-voltage power cabinet designed based on the requirements of numerous power users and design departments, following the principles of safety, economy, rationality, and reliability. The product features high breaking capacity, good dynamic and thermal stability, flexible electrical schemes, convenient combination, strong practicality, novel structure, and high protection level. It is widely used as a fixed cabinet product for low-voltage complete switchgear.

Belonging Category:

Complete sets of products

Keywords:

TKDXL series AC low-voltage power cabinet

86-538-8520889

Product Inquiry

Related Products

Product Details

Application Scope

TKDXL series AC low-voltage power cabinets are suitable for power distribution systems with AC 50Hz, Rated voltage AC400V, and Rated working current up to 630A, used by power users such as power plants, substations, factories, and mining enterprises, for the conversion, distribution, and control of electrical energy for power, lighting, and power distribution equipment.

The TKDXL type AC low-voltage power cabinet is a new type of low-voltage power cabinet designed according to the requirements of the majority of power users and design departments, based on the principles of safety, economy, rationality, and reliability. The product features high breaking capacity, good dynamic and thermal stability, flexible electrical schemes, convenient combination, strong practicality, novel structure, and high protection level. It is widely used as a fixed cabinet product for low-voltage complete switchgear.

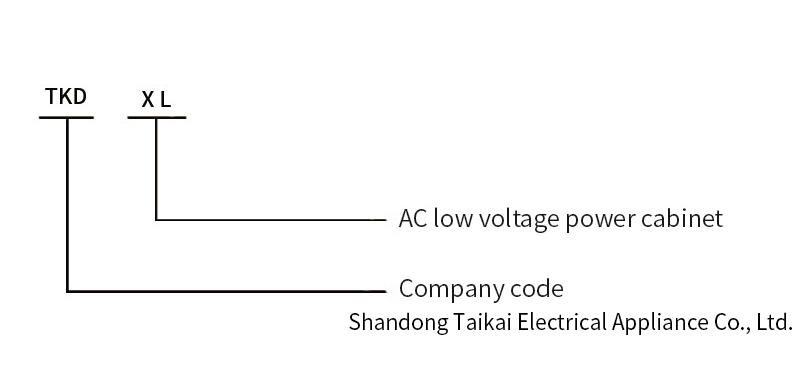

Model and Translation

Compliant Standards

The TKDXL series AC low-voltage power cabinet complies with the following standards:

GB/T 7251.1 Low-voltage switchgear and controlgear - Part 1: General rules

GB/T 7251.2 Low-voltage switchgear and controlgear - Part 2: Power switchgear and controlgear assemblies

GB/T 4208 and IEC 60529 Degrees of protection (IP Code)

Standard working conditions and installation conditions

Maximum ambient temperature +40℃, minimum ambient temperature -5℃. If specially specified by the user, it can be no lower than -25℃. The average temperature within 24 hours shall not exceed +35℃. If exceeded, derated operation is required based on actual conditions.

For indoor installation and use, the altitude of the installation site shall not exceed 2000m.

The relative humidity of the surrounding air shall not exceed 50% at a maximum temperature of +40℃. Higher relative humidity is allowed at lower temperatures, for example, 90% at +20℃. The effects of occasional condensation due to temperature changes should be considered.

The inclination of the equipment from the vertical plane shall not exceed 5° during installation.

The equipment should be installed in a place free from severe vibration and impact, and where electrical components will not be corroded. If users have special requirements, they can consult with the manufacturer.

Technical Performance Indicators

Rated voltage: AC400V ;

Rated insulation voltage: AC690V ;

Rated frequency: 50HZ ;

Rated short-time withstand current 15kA ;

Rated current ratings: 630A, 500A, 400A, 315A, 250A, 200A, 160A, 125A, 100A ;

Structural Features

The frame is assembled by local welding of cold-formed steel or stainless steel, and its rigidity and load-bearing capacity meet the installation requirements for electrical components.

The busbar copper bars are fixed with busbar clamps or insulators made of high-flame retardant materials, offering high mechanical strength and insulation strength.

The cabinet door is connected to the frame using rotary shaft hinges, making installation and disassembly convenient.

The instrument door, equipped with electrical components, is connected to the frame with multi-strand flexible copper wire. The installation inside the cabinet and the frame are connected with grounding knurled screws to form a complete grounding protection circuit.

Cabinet classification: By installation location: indoor type, outdoor type. By Mounting Method: wall-mounted (surface), wall-mounted (recessed), floor-standing. By Cabling type: top-in top-out, bottom-in bottom-out, top-in bottom-out, bottom-in top-out.

The cabinet protection level can be selected between IP30 and IP65 according to user requirements.

According to user and project actual needs, lifting rings can be optionally installed at the four corners of the cabinet top for easy lifting and transportation.

The cabinet coating adopts electrostatic spraying, eliminating glare, and has strong adhesion. All internal mounting parts are galvanized and passivated, enhancing "three-proof" performance.

Accessory list and installation

Users should provide the following information when ordering:

Name, model, and quantity of the product;

Main circuit diagram;

Auxiliary circuit electrical schematic diagram;

Other conditions inconsistent with the normal use of the product or special requirements.
