Low-voltage power distribution solution for rail transit
TKDW1/2/3 Air Circuit Breaker (ACB)
TKDM1/3 Moulded-case circuit breaker (MCCB)
TKDQ Automatic Transfer Switch
TKDB Terminal Protective Device
TKDC3 AC Contactor
Overview
With the rapid economic growth and urbanization process in China, the urban rail transit industry has also developed rapidly, with record highs in operating line length, passenger volume, and length of lines under construction. The prospects for the urban rail transit industry are broad.
Shandong Taikai Electrical Appliance Co., Ltd. adheres to serving the transportation field and is committed to providing customers with safe, stable, and environmentally friendly products and services. To meet customer needs, Taikai continuously introduces more advanced and comprehensive high-quality products that meet the standards of the transportation power distribution industry. Taikai's station/vehicle depot power supply and distribution solutions are suitable for supplying power to various power-consuming equipment at stations. It provides safe power supply for lighting systems, environmental control systems, communication signal systems, ventilation systems, air conditioning systems, fire protection systems, etc., ensuring the normal operation of the station and providing passengers with a safe and comfortable transportation environment.
Low-voltage Electrical Appliance Product Standards
● GB/T 14048.1 Low-voltage switchgear and controlgear - Part 1: General rules
● GB/T 14048.2 Low-voltage switchgear and controlgear - Part 2: Circuit-breaker
● GB/T 14048.3 Low-voltage switchgear and controlgear - Part 3: Switches, isolators, switch-disconnectors and fuse-combination units
● GB/T 14048.4 Low-voltage switchgear and controlgear - Part 4-1: Contactors and motor starters - Electromechanical contactors and motor starters
● GB/T 14048.11 Low-voltage switchgear and controlgear - Part 6-1: Multifunctional apparatus - Changeover switch apparatus
● GB/T 10963.1 Electrical accessories - Overcurrent protective circuit-breakers for household and similar purposes - Part 1: AC circuit-breakers
Standard working conditions
● Ambient temperature: -5℃～+40℃, limit ambient temperature -40℃～+70℃;
● Installation altitude: No more than 4000m (derating required for altitudes exceeding 2000m);
● When the highest temperature is +40℃, the relative humidity of the air does not exceed 50%. At lower temperatures, higher relative humidity is allowed, for example, 90% at 20℃. Special measures should be taken for occasional condensation due to temperature changes.
● Pollution degree: Grade 3
● Protection level: IP20
● Installation category: Category Ⅲ
● The vertical inclination of the installation does not exceed 5°
● Transportation and storage conditions: Not lower than -40℃, not higher than 70℃
Air conditioning room power distribution solution

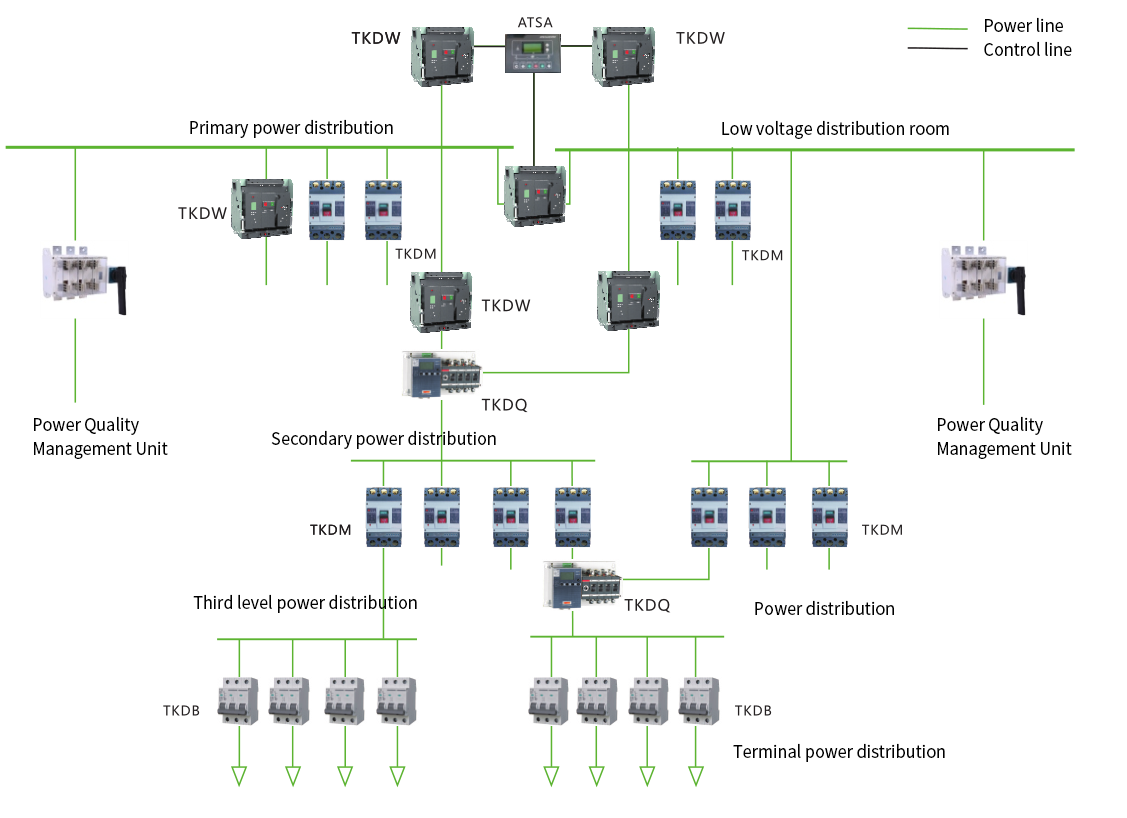

Subway low-voltage power distribution system solution
Station/vehicle depot power supply and distribution solution
Application scenarios
TKDW series Air Circuit Breaker (ACB)
| The TKDW series intelligent Air Circuit Breaker (ACB) is suitable for 50Hz AC, rated voltage up to AC1140V, rated insulation voltage 1500V, rated working current 6300A and below low-voltage power distribution networks. It is used to distribute power and protect circuits and power equipment from damage caused by overloads, undervoltages, short circuits, and single-phase grounding faults. The circuit breaker can be equipped with various intelligent controllers, with complete protection functions. The communication-type controller has a communication interface and can connect to the fieldbus to realize the "four remote" functions, meeting the needs of control automation. Compliant Standards: GB/T 14048.1 Low-voltage switchgear and controlgear Part 1: General rules GB/T 14048.2 Low-voltage switchgear and controlgear Part 2: Circuit-breaker |
Protection Functions
Intelligent Controller
| ● Basic Functions Overload long-time delay Short-circuit short-time delay Short-circuit instantaneous Current measurement Fault status display Overload pre-alarm Fault recording Functional test Self-diagnosis | ○ Optional Functions Communication function Current unbalance protection MCR and HSISC Load monitoring Power grid parameter historical memory Power measurement Power factor measurement Energy measurement Regional Chain Harmonic Measurement Contact Wear Indication ...... |
| Overload Long Delay (Multiple Protection Curves Optional) | ||
| I R | I R 1=(0.4～1) In +OFF | |
| t R (s) | At 1.5I R | t R = 15～500，OFF |
| Short Circuit Short Delay | ||
| I sd | I sd =(1.5~15 )I n +OFF | |
| t sd (s) | 0.1~1.0（Increment 0.1s） | |
| Instantaneous | ||
| I i | I i =(1.0~20 )I n +OFF | |
| t i | ≤30ms | |
| Ground Fault | ||
| I g | I sd =(0.2~1.0 )I n +OFF | |
| t g (s) | 0.1、0.2 、0.3、0.4 | |
Product Selection
TKD 1 | W1-2000 2 | / | 3P 3 | / | 630A 4 | F 5 | T12 6 | M1 7 | X1 8 | F1 9 | Q1 10 | K1 11 |
| Serial Number | Description | Model Meaning | |
| 1 | Enterprise code | TKD: Shandong Taikai Electrical Appliance Co., Ltd. | |
| 2 | Product Category | W1-2000、W1-3200、W1-4000、W2-1600、W2-6300 | |
| 3 | Pole number | 3P、4P | |
| 4 | Rated current | 200A~2000A、2000A~3200A、3200A~4000A、200A~1600A、4000A~6300A | |
| 5 | Mounting Method | F：Fixed type D：Drawer type | |
| 6 | Intelligent Controller | T1：AC230V、T2：AC400V、T3 ：DC24V、T4：DC110V、T5 ：DC220V | |
| 1 ：L type、2 ：M type、3 ：2M type、4 ：2H type、5 ：3M type、6 ：3H type | |||
| 7 | Electric Operation | M1：AC230V、M2：AC400V、M3 ：DC110V、M4：DC220V | |
| 8 | Separately Excited | X1：AC230V、 X2：AC400V、 X3 ：DC110V、 X4：DC220V | |
| 9 | Closure | F1：AC230V、 F2：AC400V、 F3 ：DC110V、 F4：DC220V | |
| 10 | Undervoltage Release | Q1：AC230V、Q2：AC400V | 1：Instantaneous、2：Delayed |
| 11 | Additional Functions and Requirements | K1：One lock one key K7：Door interlock A5：Power module A6：Neutral current transformer (see sample for details) | |
TKDM Series Moulded-case circuit-breaker (MCCB)
TKDM series Moulded-case circuit-breaker (MCCB) is suitable for AC 50Hz circuits with a rated insulation voltage of 800V and a rated voltage of 690V or less, and a rated working current of up to 800A. It is generally used for power distribution to distribute electrical energy and protect lines and power equipment from damage caused by overloads, short circuits, and undervoltage faults. It can also be used in places where motors are infrequently started. Compliant Standards: |
Protection Functions
Thermal magnetic Circuit-breaker
Overload long delay protection + short circuit instantaneous protection
Electronic Circuit-breaker
Overload long delay protection + short circuit short delay protection + short circuit instantaneous protection + ground protection (optional)
Circuit-breaker with residual current protection
Overload long delay protection + short circuit instantaneous protection + residual current protection
| Overload Long Delay | |
| 1.05I n | No operation within 2h |
| 1.3I n | Operation within 1h |
| Short Circuit Short Delay | |
| I sd ≤I＜1.5I sd | Inverse time operation, according to I 2 T sd =(1.5I sd ) 2 t sd, tolerance ±20% |
| 1.5I sd ≤I＜I i | t sd ±20% action |
| Short-circuit instantaneous | |
| I≤0.80 Ii | 0.2s no action |
| I≥1.20 Ii | Action within 0.2s |
| residual current protection | |
| 0.5I Δn | No tripping |
| 1.0I Δn | Tripping within 0.2s (non-delayed), tripping within 0.4/1.0s (delayed) |
Product Selection
TKD 1 | M 2 | 1 3 | E 4 | — | 250 5 | M 6 | P 7 | / | 3 8 | 300 9 | 2 10 | 250A 11 | Front panel wiring 12 |
| Serial Number | Description | Model Meaning |
| 1 | Enterprise code | TKD: Shandong Taikai Electrical Appliance Co., Ltd. |
| 2 | Product Category | M: Moulded-case circuit-breaker (MCCB) |
| 3 | Design SN | 1, 2, 3 |
| 4 | Tripping type | None: Thermal-magnetic trip unit E: Electronic trip unit L: With residual current protection |
| 5 | frame size | 100 (125), 160, 250 (225), 400, 630, 800 |
| 6 | Breaking capacity | C: Economy type L: Standard type M: Higher breaking capacity type H: High breaking capacity type |
| 7 | Operation mode | None: Handle operation P: Electric operating mechanism Z: Rotary handle operating mechanism |
| 8 | Pole number | 3: 3P 4: 4P |
| 9 | Attachment code | 300 (See product selection manual and samples) |
| 10 | Application code | None: Power distribution protection 2: Motor protection |
| 11 | Rated current | 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A, 80A, 100A, 125A, 140A, 160A, 180A, 200A, 225A, 250A, 315A, 400A, 500A, 630A, 800A |
| 12 | Additional functional requirements | Please note special order requirements |
TKDQ series automatic transfer switch
The TKDQ series dual-power automatic transfer switch is suitable for two-power supply systems with a rated voltage of AC400V, a frequency of 50Hz, and a rated working current of up to 1600A. It serves as a switching device between the normal power supply and the backup power supply. When one power supply fails, it automatically switches between the normal and backup power supplies to ensure the continuity of power supply to important equipment. At the same time, it can provide short-circuit and overload protection for the downstream load and cables. It is mainly used in industrial control, fire protection, banks, and other important places where power outages are not allowed. Standards compliance: |
Product structural features
The TKDQ1 series dual-power automatic transfer switch consists of a TKDM series Moulded-case circuit-breaker (MCCB) (three-pole or four-pole) and its accessories, a mechanical interlocking transmission mechanism, an intelligent controller, etc. The product is available in integrated and split structures.
The TKDQ2 series dual-power automatic transfer switch has an AC-33iB usage category and a CB-level electrical rating. The product structure consists of two TKDB1-63 Miniature Circuit Breakers (MCB) (three-pole or four-pole) and their accessories, a mechanical interlocking transmission mechanism, an intelligent controller, etc. The product structure is integrated.
The TKDQ3 series dual-power automatic transfer switch adopts an integrated electromechanical design scheme, using reliable mechanical and electrical interlocks. The executive components use independent load isolators, ensuring safe and reliable use. The product is available in integrated and split structures.
Product features:
There is a reliable mechanical interlock and electrical interlock protection between the two power supplies, eliminating the possibility of the normal power supply and the backup power supply being closed at the same time, making it safer and more reliable.
The controller circuit design adopts a power sampling and single-chip microcomputer control separation scheme, eliminating electromagnetic interference from the structural design.
It has three different control functions: self-starting and self-recovery, self-starting but not self-recovery, and grid-generator, meeting the needs of different locations.
Good safety performance, high degree of automation, high reliability, and a service life of over 8000 times.
Product Selection
TKD 1 | Q 2 | 3 3 | 250 4 | D 5 | / | 4P 6 | 250A 7 | Integrated type 9 |
| Serial Number | Description | Model Meaning |
| 1 | Enterprise code | TKD: Shandong Taikai Electrical Appliance Co., Ltd. |
| 2 | Product Category | Q: Automatic transfer switch |
| 3 | Design SN | 1, 2, 3 |
| 4 | frame size | TKDQ1: 63, 125, 250, 400, 630, 800 |
| TKDQ2: 63 | ||
| TKDQ3: 100, 160, 250, 630, 800, 1000, 1250, 1600 | ||
| 5 | Controller model | Type C, Type D, Type E, Type F (TKDQ3 product only) |
| 6 | Pole number | 2: 2P 3: 3P 4: 4P |
| 7 | Rated current | 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A, 80A, 100A, 125A, 140A, 160A, 200A, 225A, 250A, 315A, 400A, 500A, 630A, 800A, 1000A, 1250A, 1600A |
| 8 | Structural type | Integrated, split type |
| 9 | Additional functional type | Please note special order requirements |
TKDC3 series AC contactor
The TKDC3 series AC contactor is mainly used for 50Hz or 60Hz AC, rated insulation Standards compliance: |
Product Selection
TKD 1 | C 2 | 3 3 | - | D 4 | 32 5 | 2 6 | 7 7 |
| Serial Number | Description | Model Meaning |
| 1 | Enterprise code | TKD: Shandong Taikai Electrical Appliance Co., Ltd. |
| 2 | Product Category | C: AC contactor |
| 3 | Design SN | 3 |
| 4 | Dust cover code | None: No dust cover D: With dust-proof transparent cover (only 95A and below can be equipped) |
| 5 | Rated current | 09, 12, 18, 25, 32, 40, 50, 65, 80, 95, 115, 150, 170, 185, 205, 225, 245, 300, 330, 410, 475, 630 |
| 6 | Normally open auxiliary contact | 1, 2, 3, 4 |
| 7 | Normally closed auxiliary contact | 1, 2, 3, 4 |
TKDR3 series thermal relay
 | TKDR3 series thermal overload relay, suitable for 50Hz or 60Hz AC, rated Standards compliance: |
Product Selection
TKD 1 | R 2 | 3 3 | - | 25 4 | 08 5 | F 6 |
| Serial Number | Description | Model Meaning |
| 1 | Enterprise code | TKD: Shandong Taikai Electrical Appliance Co., Ltd. |
| 2 | Product Category | R: Thermal overload relay |
| 3 | Design SN | 3 |
| 4 | Specification code | 25, 36, 93 |
| 5 | Thermal element code | 01, 02, 03, 04, 05...61, 63, 65 (see sample for details) |
| 6 | Mounting Method | Z: Combination installation F: Screw separate installation |
