Industrial solutions
Product Details
Low-voltage power distribution solutions for the industrial sector
TKDW Series Air Circuit Breaker (ACB)
TKDM Series Moulded-case circuit-breaker (MCCB)
TKDB Series Terminal Protection Devices
TKDC3 Series AC Contactor
Overview
Industrial power distribution design is a key aspect of overall industrial design. The industrial sector places greater emphasis on production continuity, reduced energy consumption costs, and improved intelligent manufacturing. The scientific and rational design of power supply and distribution systems significantly impacts the safe and stable operation of industrial enterprises. Power system failures lasting just a few cycles can cause widespread production equipment shutdowns. Improving the design of power supply and distribution systems and adapting to changes in production power loads can ensure high-quality operation for industrial enterprises.
Taikai is committed to the high-end industrial power distribution market, combining intelligent components and system platforms to meet engineering and technical needs. This not only achieves status monitoring but also enables self-diagnostic functions for electrical equipment, significantly reducing the incidence of power line accidents. This provides customers with reliable power supply and distribution assurance and improves production efficiency.
Main products used in industrial power distribution: Air Circuit Breaker (ACB), Moulded-case circuit-breaker (MCCB), automatic transfer switches, AC contactors, etc.
Main requirements for low-voltage electrical appliances in industrial power distribution: safety and reliability, excellent performance, energy saving and consumption reduction, and environmental protection.
Low-voltage electrical appliance product standards
● GB/T 14048.1 Low-voltage switchgear and controlgear Part 1: General rules
● GB/T 14048.2 Low-voltage switchgear and controlgear Part 2: Circuit-breaker
● GB/T 14048.3 Low-voltage switchgear and controlgear Part 3: Switches, isolators, switch-disconnectors and fuse-combination units
● GB/T 14048.4 Low-voltage switchgear and controlgear Part 4-1: Contactors and motor starters Electromechanical contactors and motor starters
● GB/T 14048.11 Low-voltage switchgear and controlgear Part 6-1: Multifunctional apparatus Changeover switch apparatus
● GB/T 10963.1 Electrical accessories Overcurrent protective circuit-breakers for household and similar purposes Part 1: AC circuit-breakers
Stand working conditions
● Operating ambient temperature: -5℃～+40℃, limit ambient temperature -40℃～+70℃;
● Installation altitude: no more than 4000m (derating required for altitudes exceeding 2000m);
● At a maximum temperature of +40℃, the relative humidity of the air should not exceed 50%. Higher relative humidity is permissible at lower temperatures, e.g., 90% at 20℃. Special measures should be taken for condensation occasionally caused by temperature changes.
● Pollution degree: Grade 3
● Protection level: IP20
● Installation category: Category Ⅲ
● Maximum vertical inclination of installation: no more than 5°
● Transportation and storage conditions: not lower than -40℃, not higher than 70℃

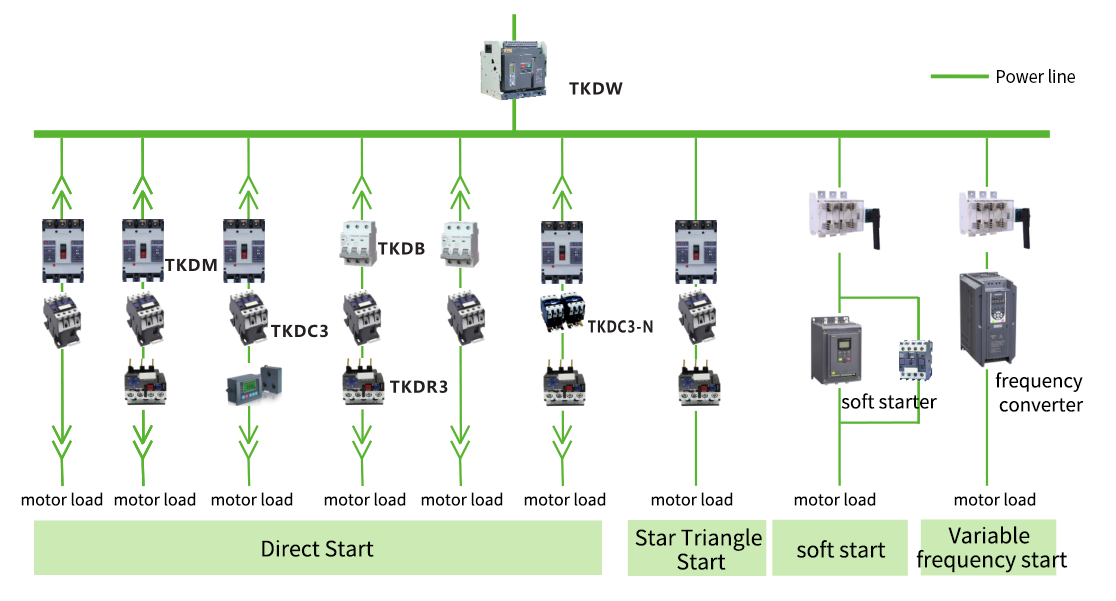

Motor Control Center Application Solutions
Instrumentation and Control Room Application Solutions

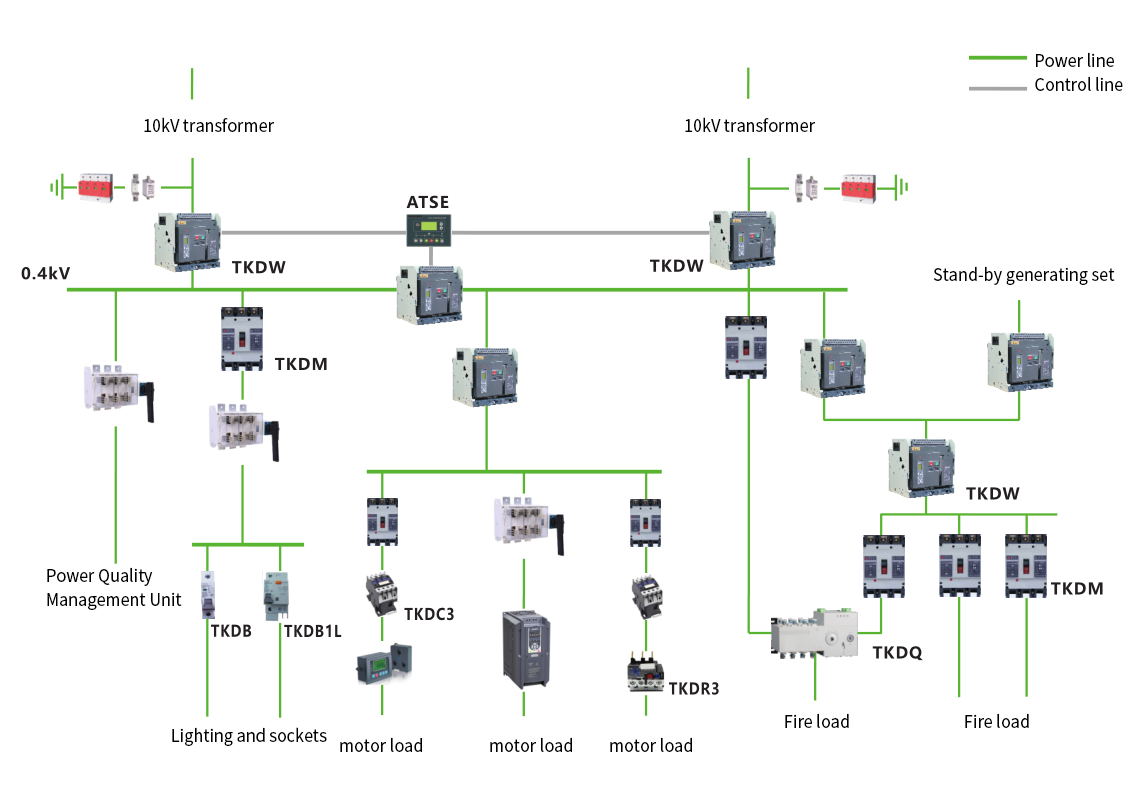

Industrial Low-Voltage Power Distribution Application Solutions
Application Scenarios
TKDW Series Air Circuit Breaker (ACB)
| The TKDW series intelligent Air Circuit Breaker (ACB) is suitable for 50Hz AC, rated voltage up to AC800V, rated insulation voltage 1000V, rated working current 6300A and below low-voltage power distribution networks. It is used to distribute power and protect circuits and power equipment from damage caused by overloads, undervoltages, short circuits, and single-phase grounding faults. The circuit breaker can be equipped with various intelligent controllers, with complete protection functions. Communication-type controllers have communication interfaces and can connect to fieldbuses to realize "four remote" functions, meeting the needs of automated control. Compliant Standards: GB/T 14048.1 Low-voltage switchgear and controlgear Part 1: General rules GB/T 14048.2 Low-voltage switchgear and controlgear Part 2: Circuit-breaker |
Protection Functions
Intelligent Controller
| ● Basic Functions Overload long-time delay Short-circuit short-time delay Short-circuit instantaneous Current measurement Fault status display Overload pre-warning Fault recording Functional testing Self-diagnosis | ○ Optional Functions Communication function Current unbalance protection MCR and HSISC Load monitoring Power grid parameter historical memory Power measurement Power Factor Measurement Electric Energy Measurement Regional Interlocking Harmonic Measurement Contact Wear Indication ...... |
| Overload Long Delay (Multiple Protection Curves Optional) | ||
| IR | IR1=(0.4～1)In+OFF | |
| tR(s) | At 1.5IR | tR=15～500，OFF |
| Short Circuit Short Delay | ||
| Isd | Isd=(1.5～15)In+OFF | |
| tsd(s) | 0.1～1.0（Increment 0.1s） | |
| Instantaneous | ||
| Ii | Ii=(1.0～20)In+OFF | |
| ti | ≤30ms | |
| Ground Fault | ||
| Ig | Isd=(0.2～1.0)In+OFF | |
| tg(s) | 0.1、0.2、0.3、0.4 | |
Product Selection
TKD 1 | W1-2000 2 | / | 3P 3 | / | 630A 4 | F 5 | T12 6 | M1 7 | X1 8 | F1 9 | Q1 10 | K1 11 |
| Serial Number | Description | Model Meaning | |
| 1 | Enterprise code | TKD: Shandong Taikai Electrical Appliance Co., Ltd. | |
| 2 | Product Category | W1-2000、W1-3200、W1-4000、W2-1600、W2-6300 | |
| 3 | Pole number | 3P、4P | |
| 4 | Rated current | 200A～2000A、2000A～3200A、3200A～4000A、200A～1600A、4000A～6300A | |
| 5 | Mounting Method | F：Fixed type D：Drawer type | |
| 6 | Intelligent Controller | T1：AC230V、T2：AC400V、T3：DC24V、T4：DC110V、T5：DC220V | |
| 1：L type、2：M type、3：2M type、4：2H type、5：3M type、6：3H type | |||
| 7 | Electric Operation | M1：AC230V、M2：AC400V、M3：DC110V、M4：DC220V | |
| 8 | Separately Excited | X1：AC230V、X2：AC400V、X3：DC110V、X4：DC220V | |
| 9 | Closure | F1：AC230V、F2：AC400V、F3：DC110V、F4：DC220V | |
| 10 | Undervoltage Tripper | Q1：AC230V、Q2：AC400V | 1：Instantaneous、2：Delayed |
| 11 | Additional Functions and Requirements | K1：One lock one key K7：Door interlock A5：Power module A6：Neutral current transformer (see sample for details) | |
TKDM Series Moulded-case circuit-breaker (MCCB)
The TKDM series moulded-case circuit breaker (MCCB) is suitable for AC 50Hz circuits with a rated insulation voltage of 800V and a rated voltage of 690V or less, and a rated working current of up to 800A. It is generally used for power distribution to protect lines and power equipment from damage caused by overloads, short circuits, and undervoltage faults. It can also be used in places where motors are infrequently started. Compliant Standards: |
Protection Functions
Thermal Magnetic Circuit Breaker
Overload long delay protection + Short circuit instantaneous protection
Electronic Circuit Breaker
Overload long delay protection + Short circuit short delay protection + Short circuit instantaneous protection + Ground fault protection (optional)
Circuit Breaker with Residual Current Protection
Overload long delay protection + Short circuit instantaneous protection + Residual current protection
| Overload Long Delay | |
| 1.05In | No operation within 2h |
| 1.3In | Operation within 1h |
| Short Circuit Short Delay | |
| I sd ≤I＜1.5I sd | Reverse time-limit action, according to I 2 T sd =(1.5I sd ) 2 t sd , tolerance ±20% |
| 1.5I sd ≤I＜I i | t sd ±20% action |
| Short-circuit instantaneous | |
| I≤0.80 Ii | 0.2s no action |
| I≥1.20 Ii | Action within 0.2s |
| residual current protection | |
| 0.5I Δn | No tripping |
| 1.0I Δn | Trip within 0.2s (non-delayed), trip within 0.4/1.0s (delayed) |
Product Selection
TKD 1 | M 2 | 1 3 | E 4 | — | 250 5 | M 6 | P 7 | / | 3 8 | 300 9 | 2 10 | 250A 11 | Front panel wiring 12 |
| Serial Number | Description | Model Meaning |
| 1 | Enterprise code | TKD: Shandong Taikai Electrical Appliance Co., Ltd. |
| 2 | Product Category | M: Moulded-case circuit-breaker (MCCB) |
| 3 | Design SN | 1, 2, 3 |
| 4 | Trip type | None: Thermal-magnetic trip unit E: Electronic trip unit L: With residual current protection |
| 5 | frame size | 100 (125), 160, 250 (225), 400, 630, 800 |
| 6 | Breaking capacity | C: Economic type L: Standard type M: Higher breaking capacity type H: High breaking capacity type |
| 7 | Operation mode | None: Manual operation P: Electric operating mechanism Z: Rotary handle operating mechanism |
| 8 | Pole number | 3: 3P 4: 4P |
| 9 | Attachment code | 300 (See product selection manual and samples) |
| 10 | Application code | None: Power distribution protection 2: Motor protection |
| 11 | Rated current | 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A, 80A, 100A, 125A, 140A, 160A, 180A, 200A, 225A, 250A, 315A, 400A, 500A, 630A, 800A |
| 12 | Additional functional requirements | Please note special order requirements |
TKDQ series automatic transfer switch
The TKDQ series dual-power automatic transfer switch is suitable for two-power supply systems with a rated voltage of AC400V, a frequency of 50Hz, and a rated working current of up to 1600A. It serves as a switching device between the normal power supply and the backup power supply. When one power supply fails, it automatically switches between the normal and backup power supplies to ensure the continuity of power supply to important equipment. At the same time, it can provide short-circuit and overload protection for the downstream load and cables. It is mainly used in industrial control, fire protection, banks, and other important places where power outages are not allowed. Compliant standards: |
Product structural characteristics
The TKDQ1 series dual-power automatic transfer switch consists of a TKDM series Moulded-case circuit-breaker (MCCB) (three-pole or four-pole) and its accessories, a mechanical interlocking transmission mechanism, an intelligent controller, etc. The product is available in integrated and split structures.
The TKDQ2 series dual-power automatic transfer switch has an AC-33iB usage category and a CB-level electrical rating. Its structure consists of two TKDB1-63 Miniature Circuit Breakers (MCBs) (three-pole or four-pole) and their accessories, a mechanical interlocking transmission mechanism, an intelligent controller, etc. The product structure is integrated.
The TKDQ3 series dual-power automatic transfer switch adopts an integrated electromechanical design scheme, using reliable mechanical and electrical interlocks. The executive components use independent load isolators, ensuring safe and reliable use. The product is available in integrated and split structures.
Product features:
Reliable mechanical and electrical interlock protection between the two power supplies eliminates the possibility of the normal and backup power supplies being closed at the same time, making it safer and more reliable.
The controller circuit design adopts a power sampling and single-chip microcomputer control separation scheme, eliminating electromagnetic interference from the structural design.
It has three different control functions: self-starting and self-recovery, self-starting but not self-recovery, and grid-generator, meeting the needs of different locations.
Good safety performance, high degree of automation, high reliability, and a service life of over 8000 times.
Product Selection
TKD 1 | Q 2 | 3 3 | 250 4 | D 5 | / | 4P 6 | 250A 7 | Integrated type 9 |
| Serial Number | Description | Model Meaning |
| 1 | Enterprise code | TKD: Shandong Taikai Electrical Appliance Co., Ltd. |
| 2 | Product Category | Q: Automatic transfer switch |
| 3 | Design SN | 1, 2, 3 |
| 4 | frame size | TKDQ1: 63, 125, 250, 400, 630, 800 |
| TKDQ2: 63 | ||
| TKDQ3: 100, 160, 250, 630, 800, 1000, 1250, 1600 | ||
| 5 | Controller model | Type C, Type D, Type E, Type F (TKDQ3 product only) |
| 6 | Pole number | 2: 2P 3: 3P 4: 4P |
| 7 | Rated current | 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A, 80A, 100A, 125A, 140A, 160A, 200A, 225A, 250A, 315A, 400A, 500A, 630A, 800A, 1000A, 1250A, 1600A |
| 8 | Structural Type | Integrated, Separate |
| 9 | Additional Functional Type | Please note special order requirements |
TKDC3 Series AC Contactor
The TKDC3 series AC contactor is mainly used for AC 50Hz or 60Hz, rated insulation Compliant standards: |
Product Selection
TKD 1 | C 2 | 3 3 | - | D 4 | 32 5 | 2 6 | 7 7 |
| Serial Number | Description | Model Meaning |
| 1 | Enterprise code | TKD: Shandong Taikai Electrical Appliance Co., Ltd. |
| 2 | Product Category | C: AC Contactor |
| 3 | Design SN | 3 |
| 4 | Dust Cover Code | None: No dust cover D: With transparent dust cover (only available for 95A and below) |
| 5 | Rated current | 09, 12, 18, 25, 32, 40, 50, 65, 80, 95, 115, 150, 170, 185, 205, 225, 245, 300, 330, 410, 475, 630 |
| 6 | Normally Open Auxiliary Contact | 1, 2, 3, 4 |
| 7 | Normally Closed Auxiliary Contact | 1, 2, 3, 4 |
TKDR3 Series Thermal Relay
 | TKDR3 series thermal overload relays are suitable for AC 50Hz or 60Hz, rated Compliant standards: |
Product Selection
TKD 1 | R 2 | 3 3 | - | 25 4 | 08 5 | F 6 |
| Serial Number | Description | Model Meaning |
| 1 | Enterprise code | TKD: Shandong Taikai Electrical Appliance Co., Ltd. |
| 2 | Product Category | R: Thermal Overload Relay |
| 3 | Design SN | 3 |
| 4 | Specification Code | 25, 36, 93 |
| 5 | Thermal Element Code | 01, 02, 03, 04, 05...61, 63, 65 (see sample for details) |
| 6 | Mounting Method | Z: Combination installation F: Screw separate installation |
