Low voltage cable branch box

The TKDDF series outdoor low-voltage cable branch box (hereinafter referred to as the branch box) is a new type of power distribution equipment designed by our company based on the requirements of power grid construction and transformation and power grid operation experience, following the principles of safety, economy, rationality, and reliability. It is suitable for urban streets, industrial and mining enterprises, residential areas, and other places.

Belonging Category:

Complete sets of products

Keywords:

Low voltage cable branch box

86-538-8520889

Product Inquiry

Related Products

Product Details

Scope of Application

The TKDDF series outdoor low-voltage cable branch box (hereinafter referred to as the branch box) is a new type of power distribution equipment designed by our company based on the requirements of power grid construction and transformation and power grid operation experience, adhering to the principles of safety, economy, rationality, and reliability. It is suitable for urban streets, industrial and mining enterprises, residential areas, and other places.

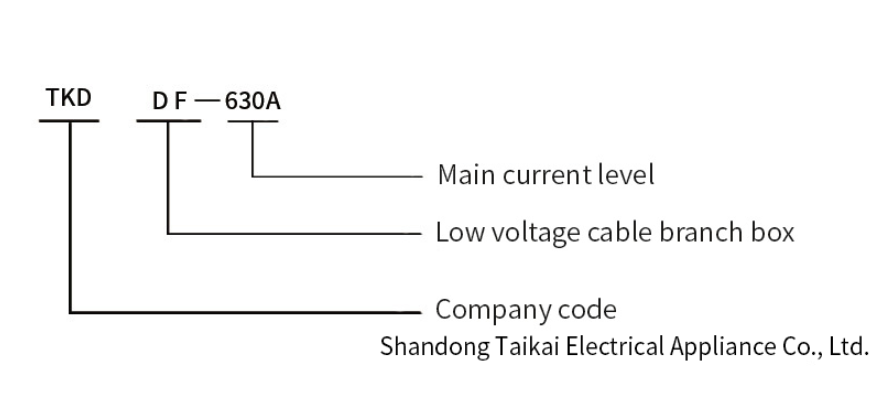

Model and Meaning

Standards Compliance

The TKDDF series low-voltage cable branch box complies with the following standards:

GB/T 7251.1 Low-voltage switchgear and controlgear - Part 1: General rules

GB/T 7251.5 Low-voltage switchgear and controlgear - Part 5: Assemblies for power distribution in public electrical networks

GB/T 4208 and IEC 60529 Degree of protection (IP Code)

Working Conditions and Installation Conditions

Ambient temperature: Maximum temperature +40℃, 24-hour average temperature not exceeding 35℃, minimum temperature -25℃;

Relative humidity: ≤90% (relative ambient temperature 20℃~25℃). In areas with large diurnal temperature differences, measures such as ventilation, dehumidification, or heating should be taken to prevent condensation;

Maximum wind speed: 35m/s;

Altitude: Not exceeding 2000m;

Environmental conditions: Outdoor installation, not suitable for places with fire, explosion hazards, severe pollution, chemical corrosion, and severe vibration;

Installation location: The inclination angle to the ground should not exceed 5°;

Pollution level: Level 3;

Protection level: IP44;

Main Technical Parameters

Rated voltage: AC400V;

Rated insulation voltage: AC690V;

Rated frequency: 50Hz;

Rated short-time withstand current: 20kA;

Rated peak withstand current: 40kA;

Rated current: 630A, 500A, 400A, 315A, 250A, 200A, 160A, 125A, 100A;

Enclosure material: Stainless steel, SMC;

Product Types

According to the enclosure material, it can be divided into stainless steel low-voltage cable branch boxes and non-metallic (SMC) low-voltage cable branch boxes.

Stainless Steel Low-Voltage Cable Branch Box

The stainless steel low-voltage cable branch box has a closed structure: Made of stainless steel plates with a thickness of not less than 2mm. The horizontal busbar is located in the middle of the box. It adopts bottom-in and bottom-out wiring. The box door is made of 2mm thick stainless steel plate bending and welding, and the box door opening angle is greater than 90 degrees;

Front manual operation, double-sided maintenance;

Protective grounding measures: A copper busbar is installed in the middle of the left side of the cabinet as a grounding busbar, with M8 grounding points and grounding marks;

Corrosion protection measures: All metal components have anti-corrosion capabilities, and the box is made of stainless steel.

Non-Metallic Low-Voltage Cable Branch Box

The non-metallic low-voltage cable branch box has a closed structure: Made of 4.0mm thick, high-strength, and aging-resistant SMC plastic molding. The horizontal busbar is located in the middle of the box;

Operation mode: Front Manual operation;

Corrosion protection measures: The box is made of SMC resin composite material. SMC resin composite material uses unsaturated resin as the matrix and fiberglass as the skeleton, which is formed at high temperature. It has light weight, corrosion resistance, aging resistance, good sealing performance, safety and beauty, and has all-weather protection functions, which can meet the needs of various harsh environments and places in outdoor engineering projects.

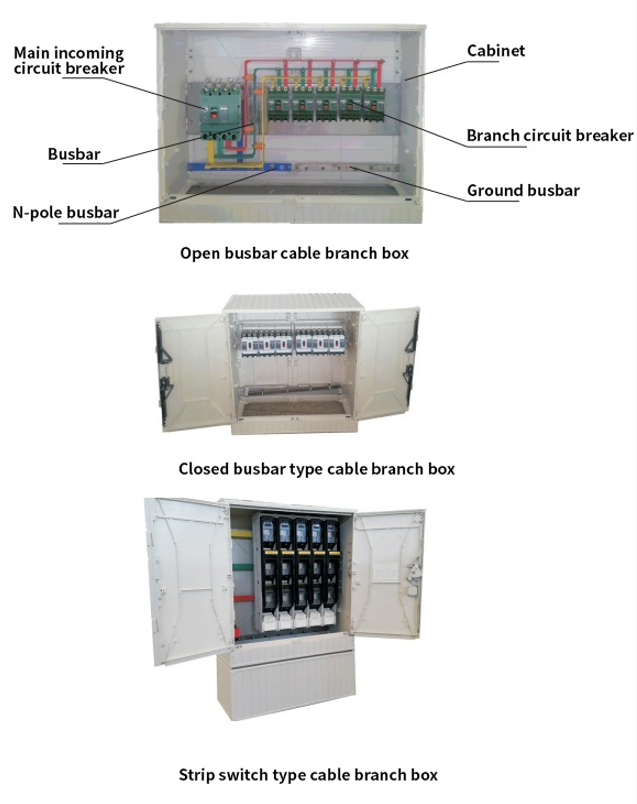

Structural Overview

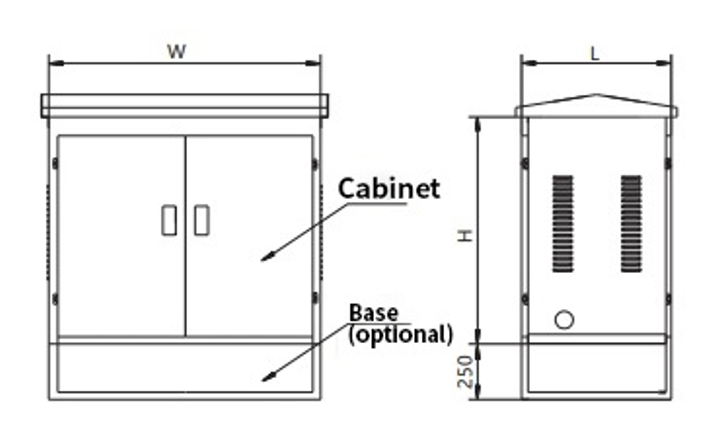

Appearance and Installation Dimensions

Branch box appearance dimension diagram

Product Type	W	L	H
Stainless Steel Low-Voltage Cable Branch Box	600	600	870
	800	600	870
	1000	600	870
	1200	600	870
Non-Metallic Low-Voltage Cable Branch Box	600	320	870
	800	320	870
	1000	320	870
	1200	320	870

Usage and Maintenance Notices

Operation, maintenance, and inspection of this product must be performed by qualified electrical personnel;

Reliable sealing measures should be adopted at the cable entry and exit points to ensure safe operation;

Circuit breakers should be regularly maintained;

Dust cleaning should be carried out at least once a year on the inner and outer surfaces of the branch box, especially the surface of the insulation parts;

After 5 years of operation, the insulation level of the main and auxiliary circuits of the branch box should be tested;

When maintaining and inspecting, please ensure that the branch box is de-energized.

Accessory List and Installation

The following information needs to be provided when ordering: ：

Whether to include a base and mounting bracket;

Product name, model, specifications, number of input and output lines, input and output methods, rated current;

Main circuit diagram, auxiliary circuit diagram;

Name, model, specifications, and quantity of main components;

Enclosure material, thickness, size requirements, and spray marking;

Special environmental usage requirements and other additional requirements.
